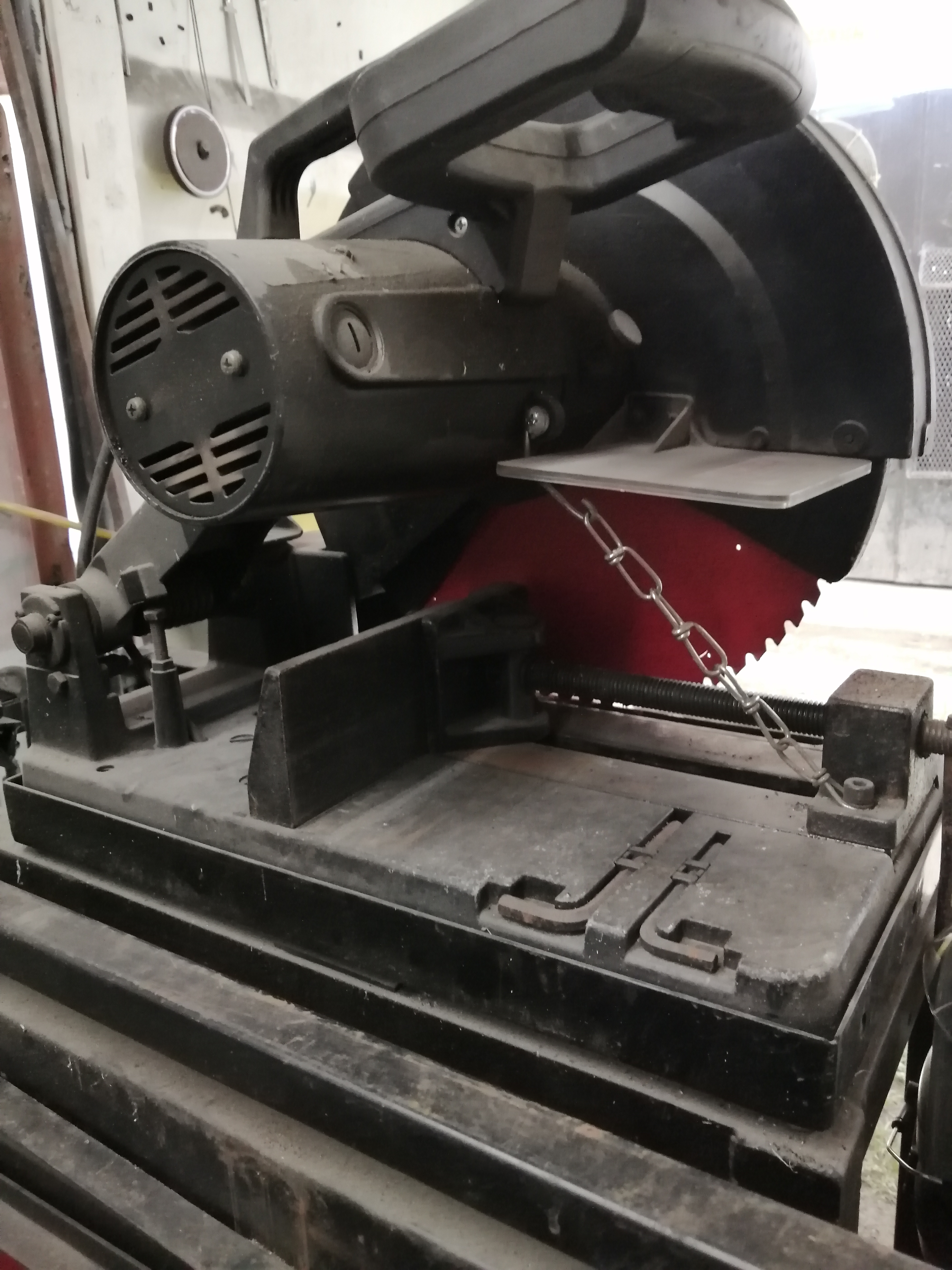

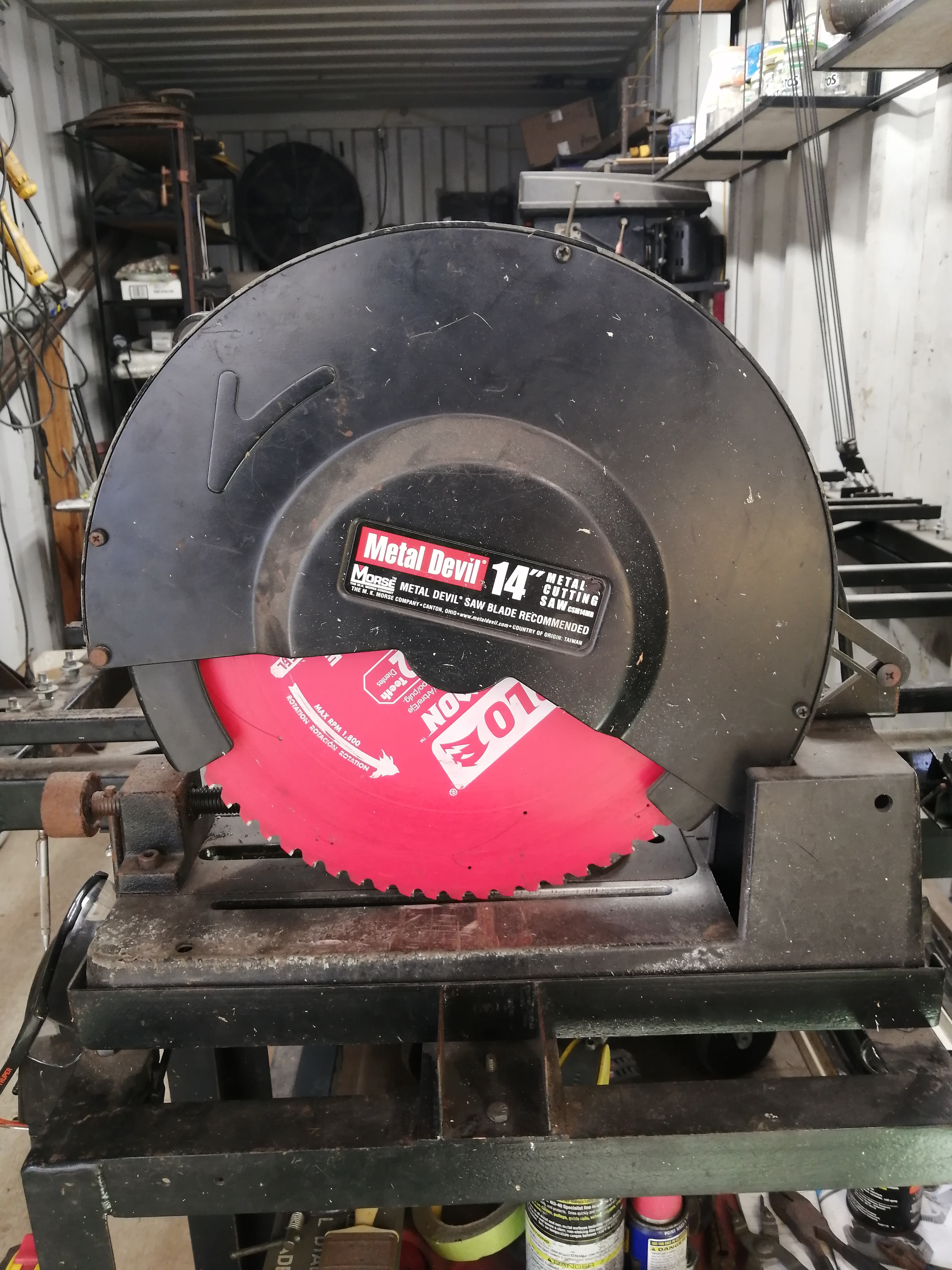

Saw chained down.

.

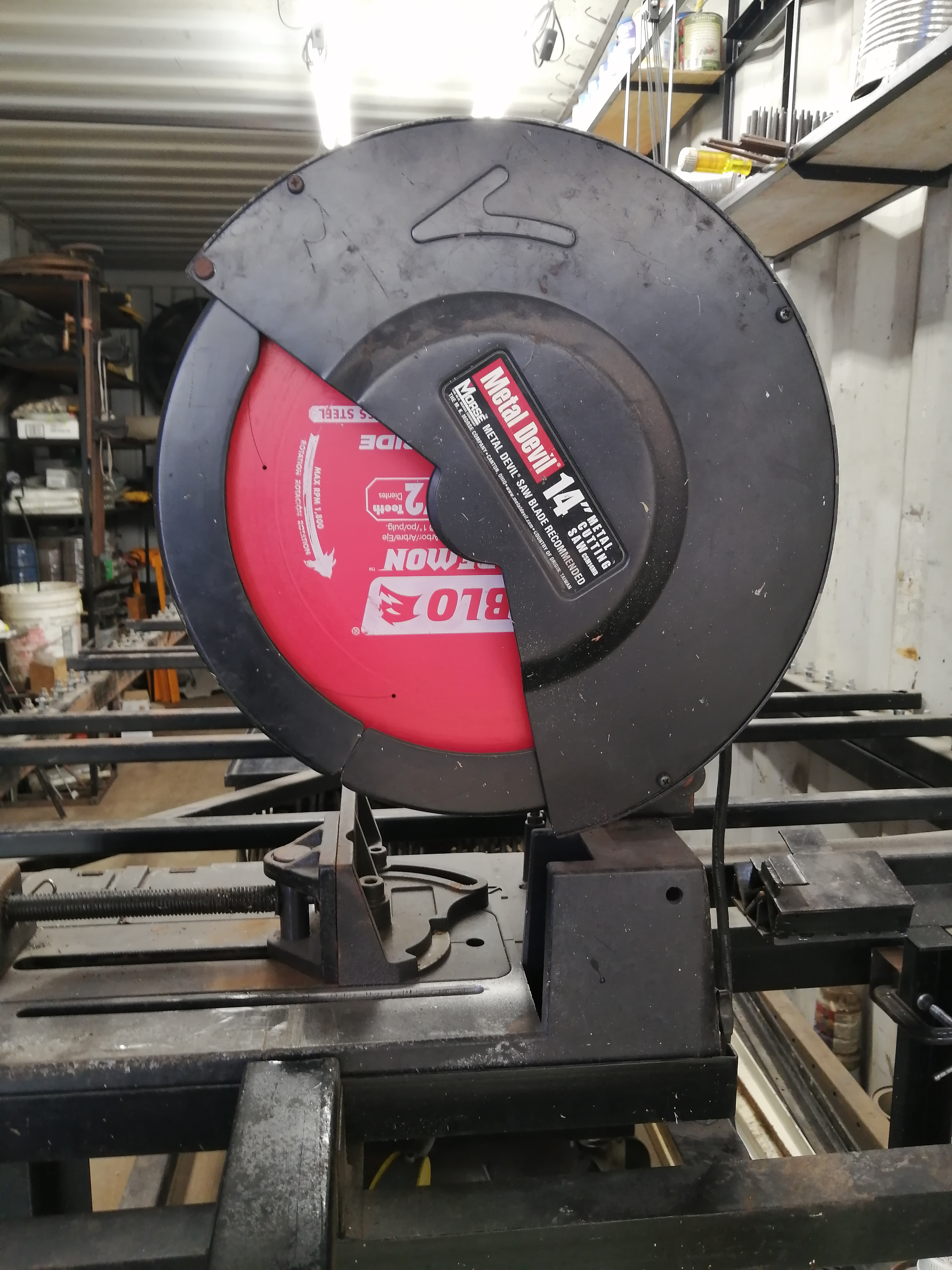

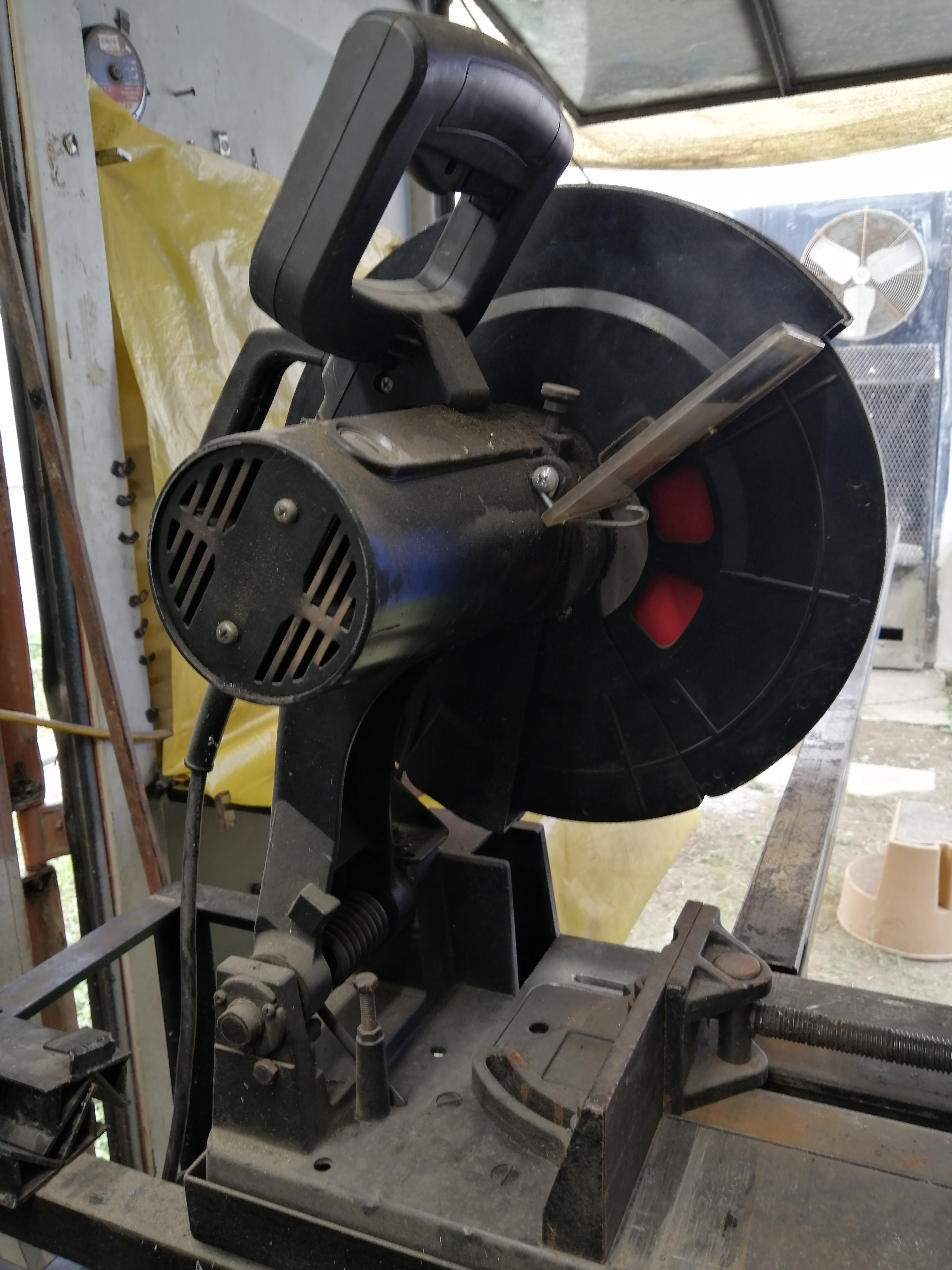

Saw unchained.

.

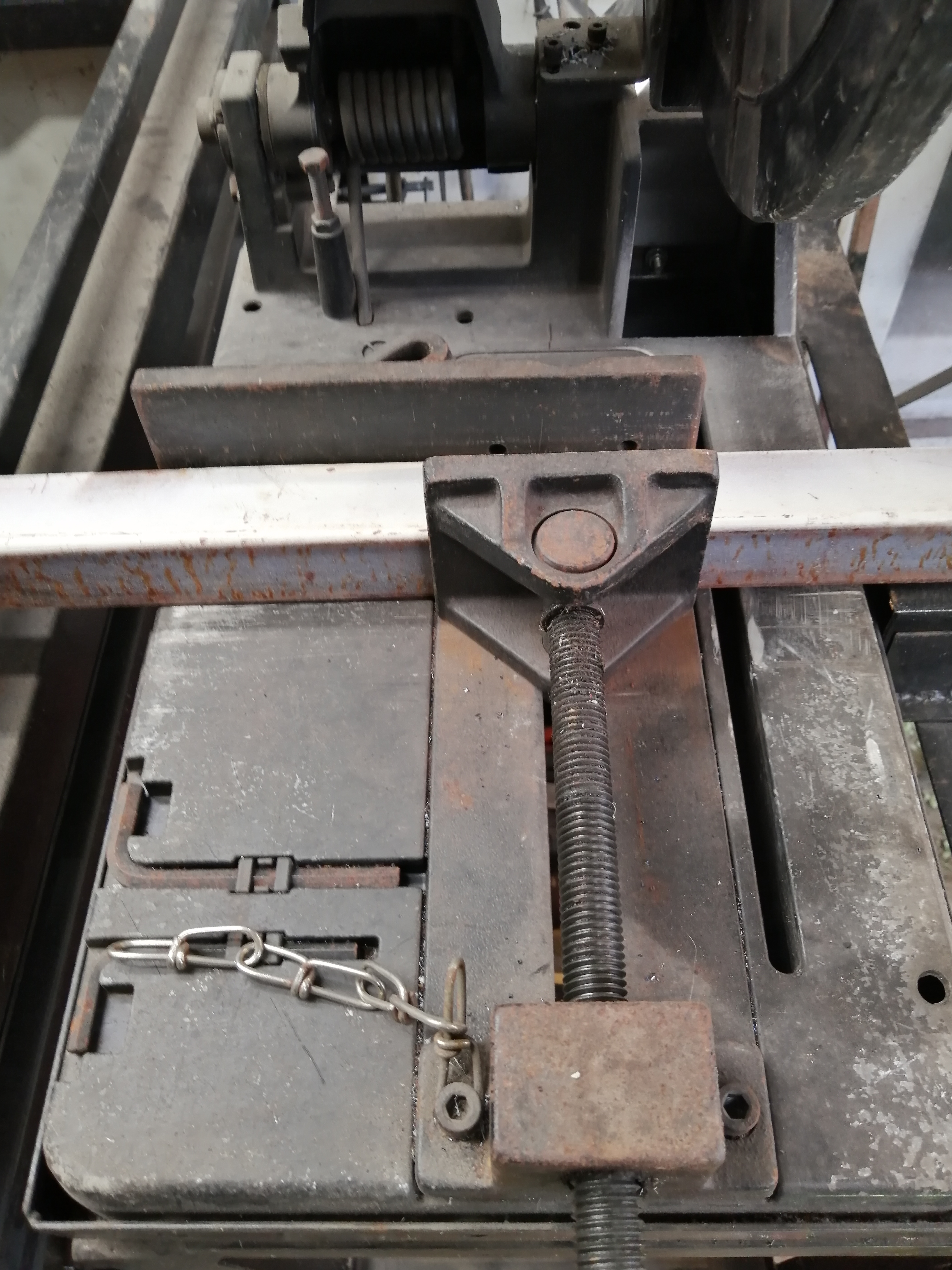

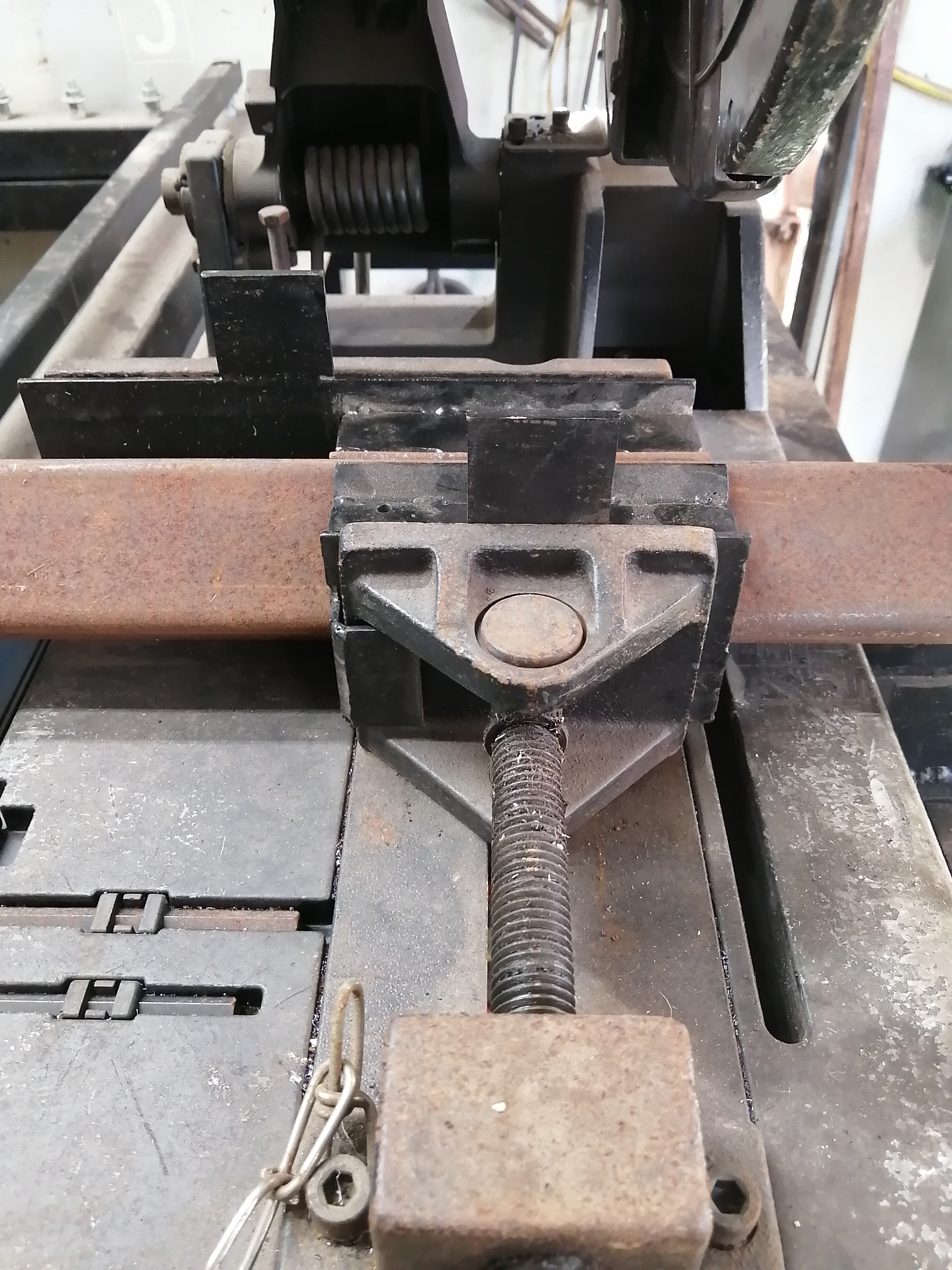

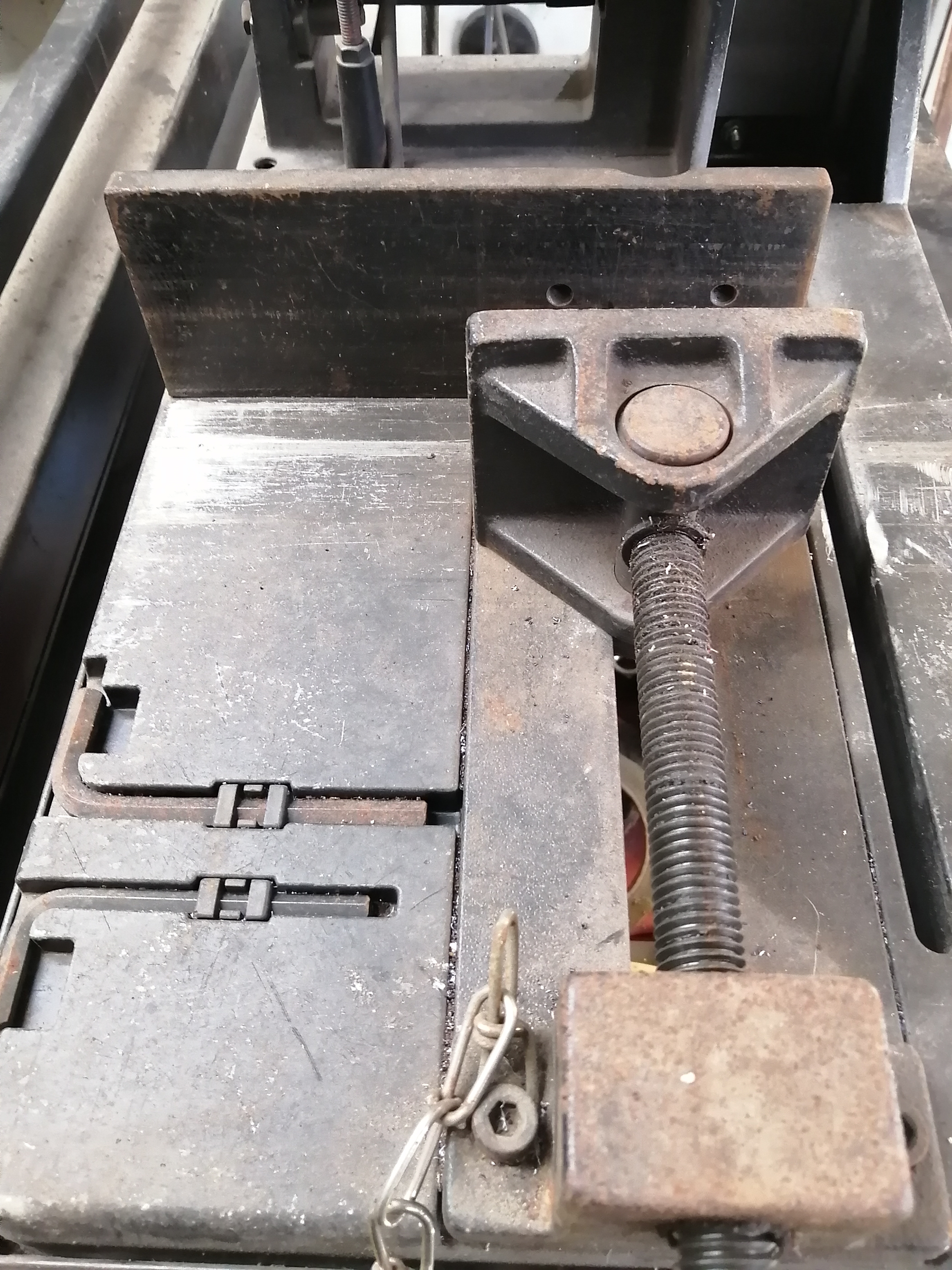

Vise is normally set to cut perpendicular.

The bed slot is where the saw blade plunges.

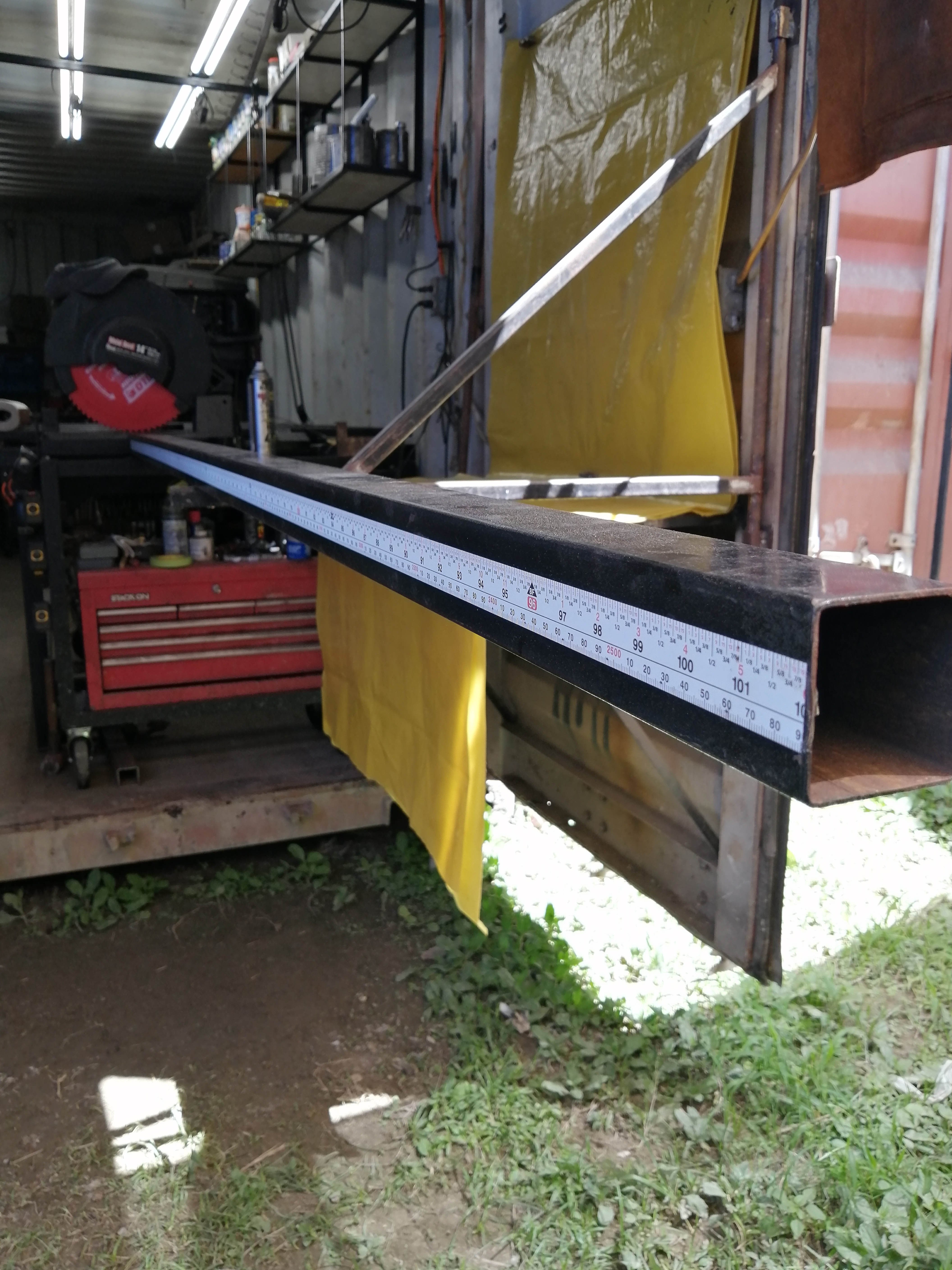

Square tubing 'out-feed table' with measuring tape.

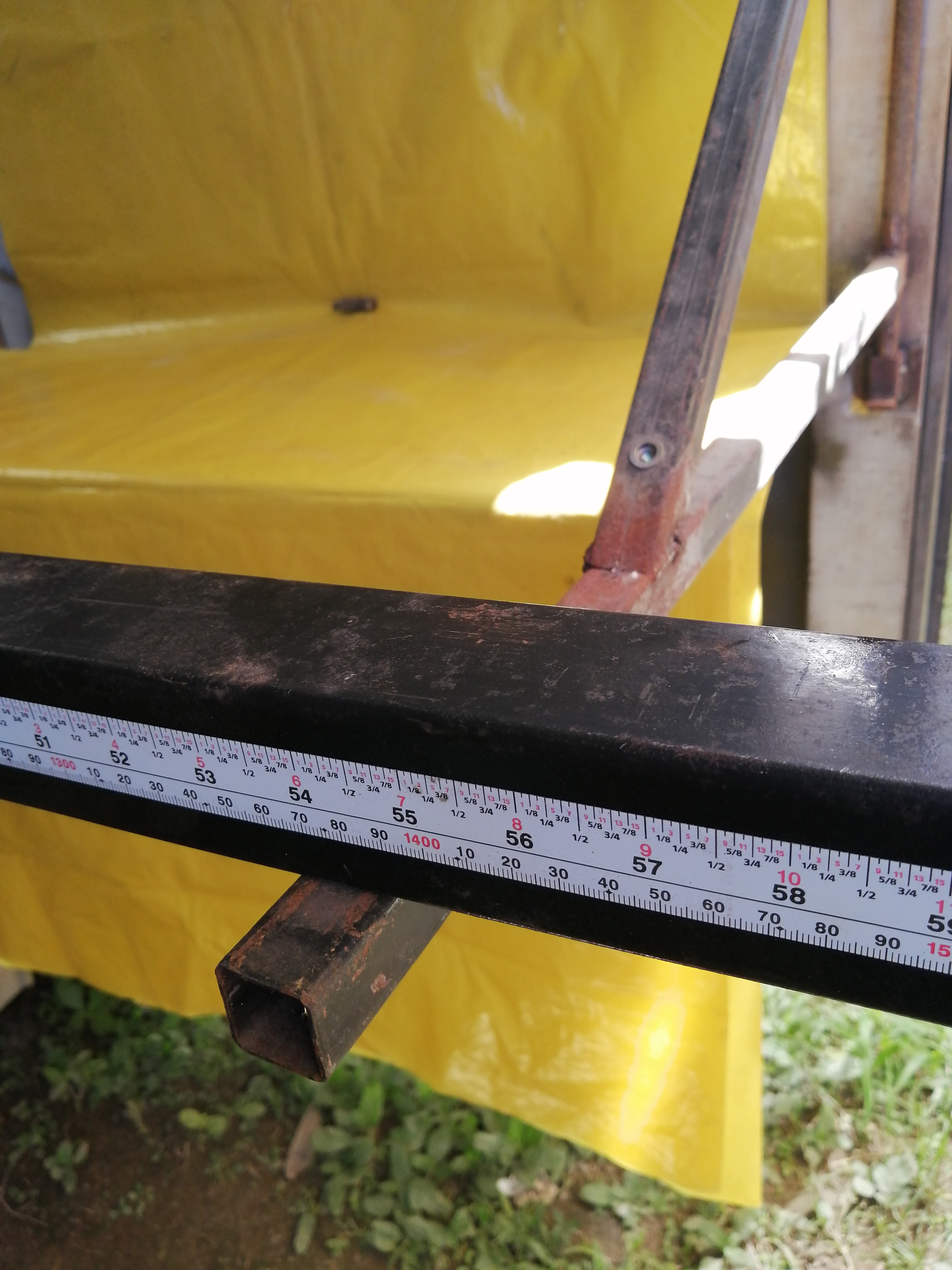

Container door supports 'out-feed table'.

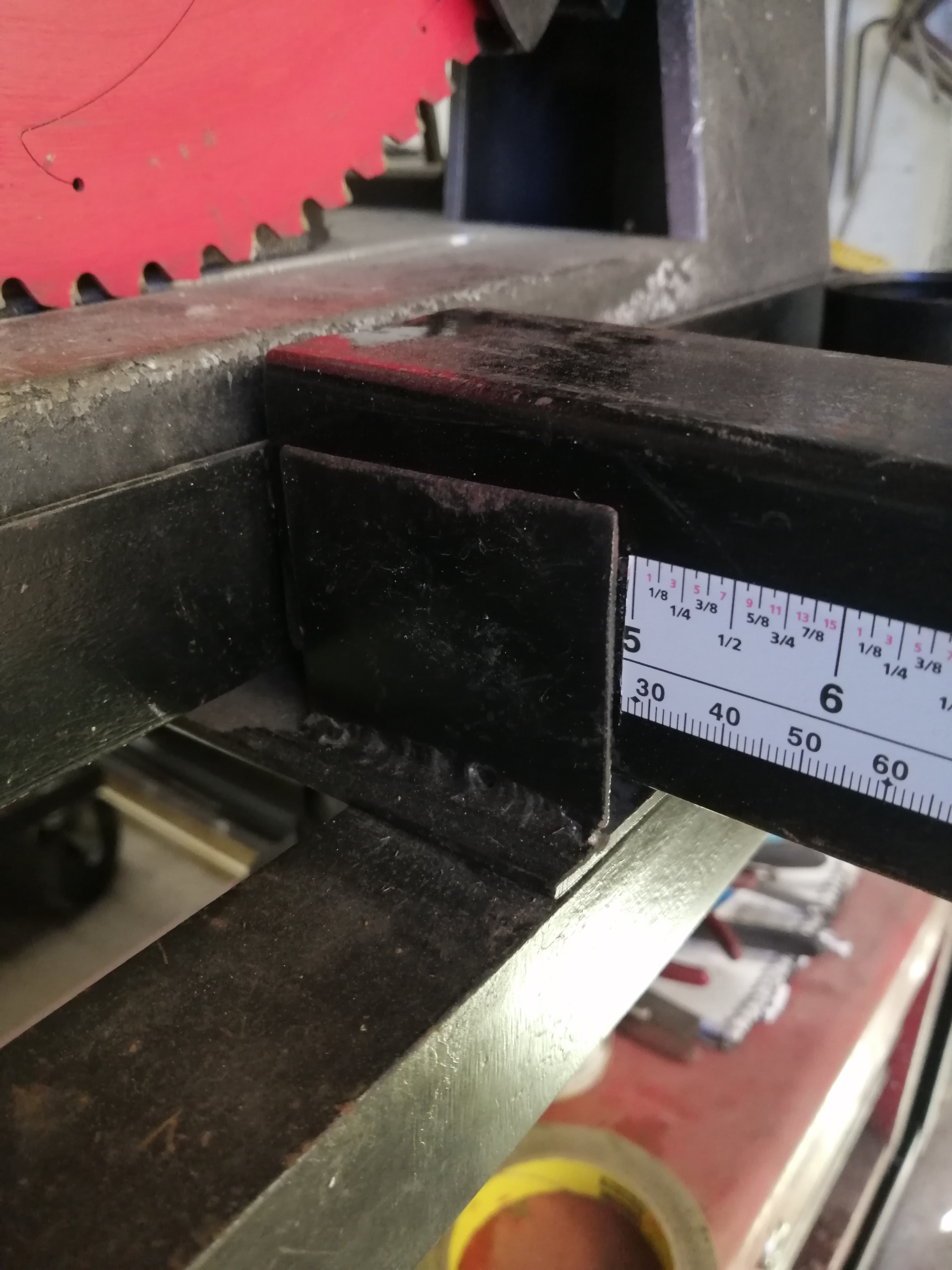

Left end of 'out-feed table'.

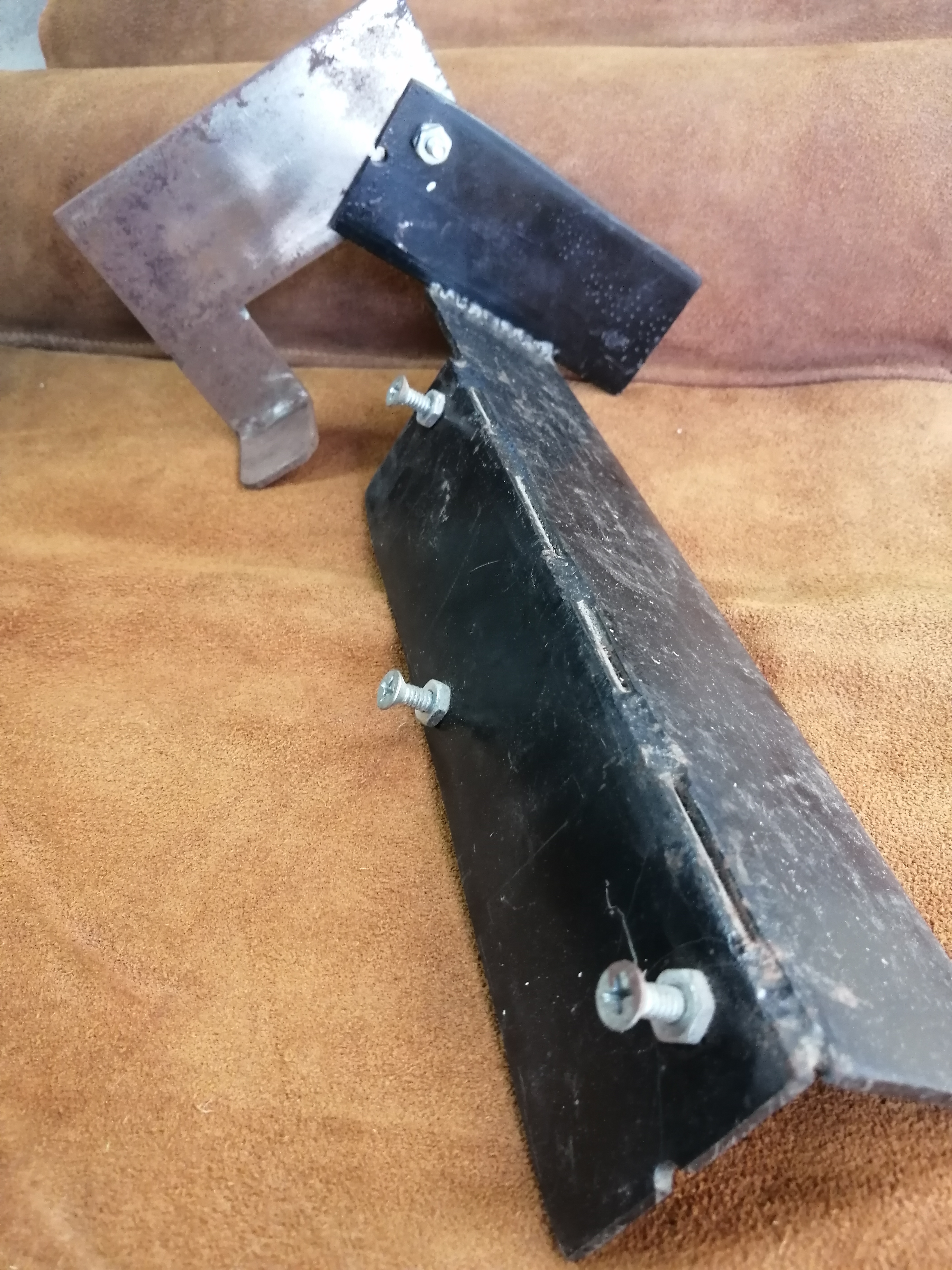

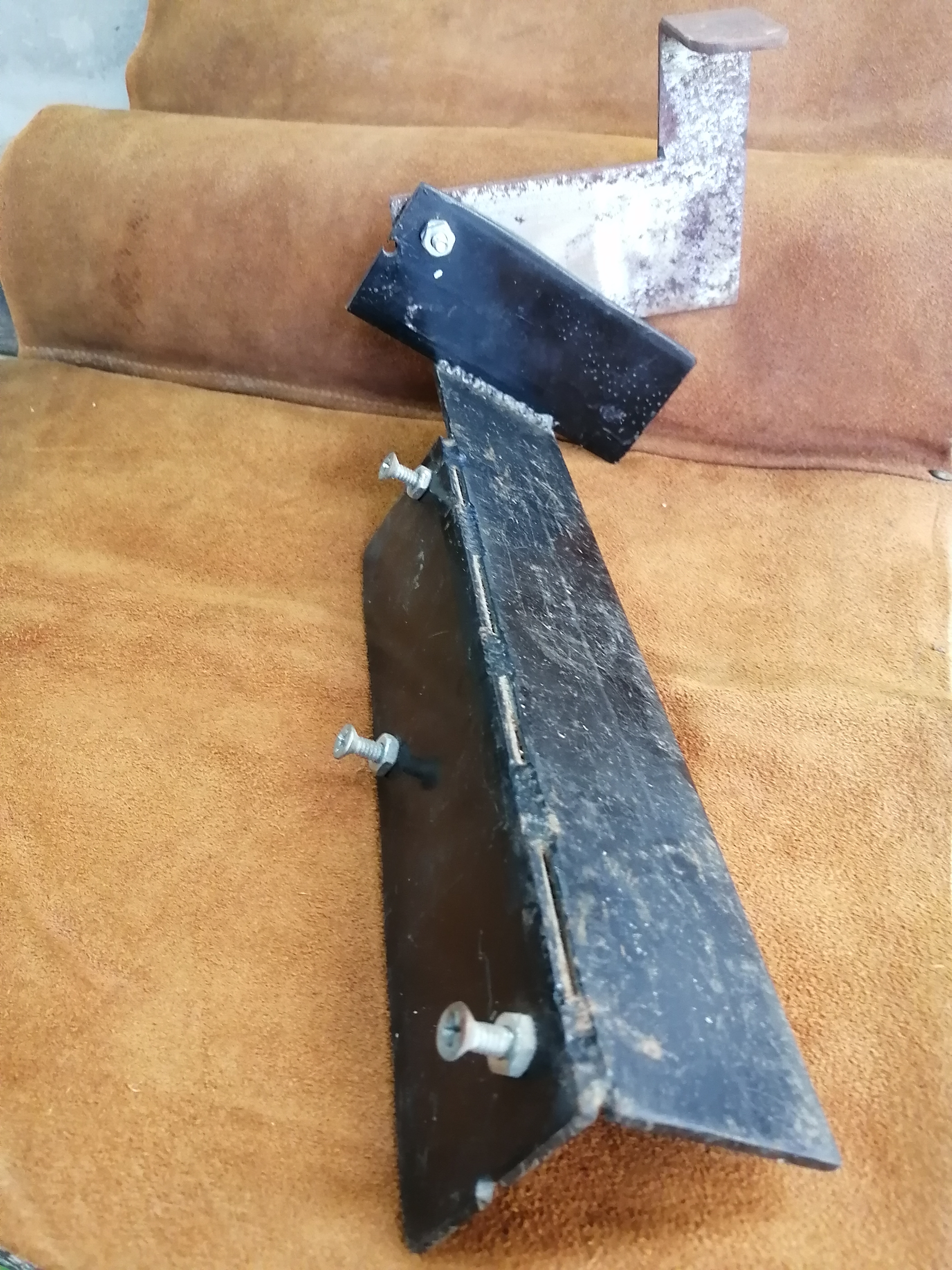

'Cut Stop' used when multiple same length cuts are required.

Hinged spacer prevents blade binding during a cut.

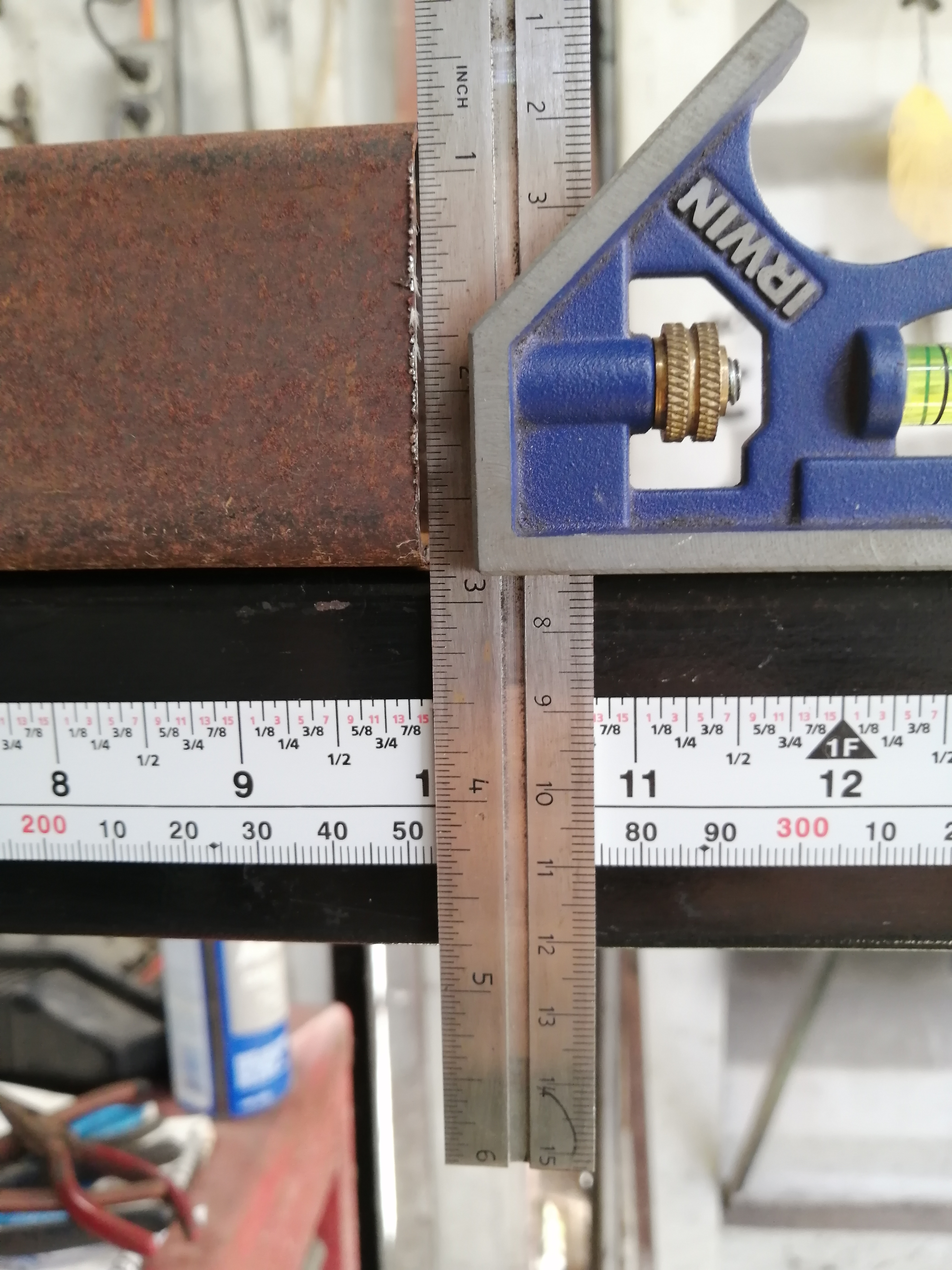

Set first work piece to length & clamp vise.

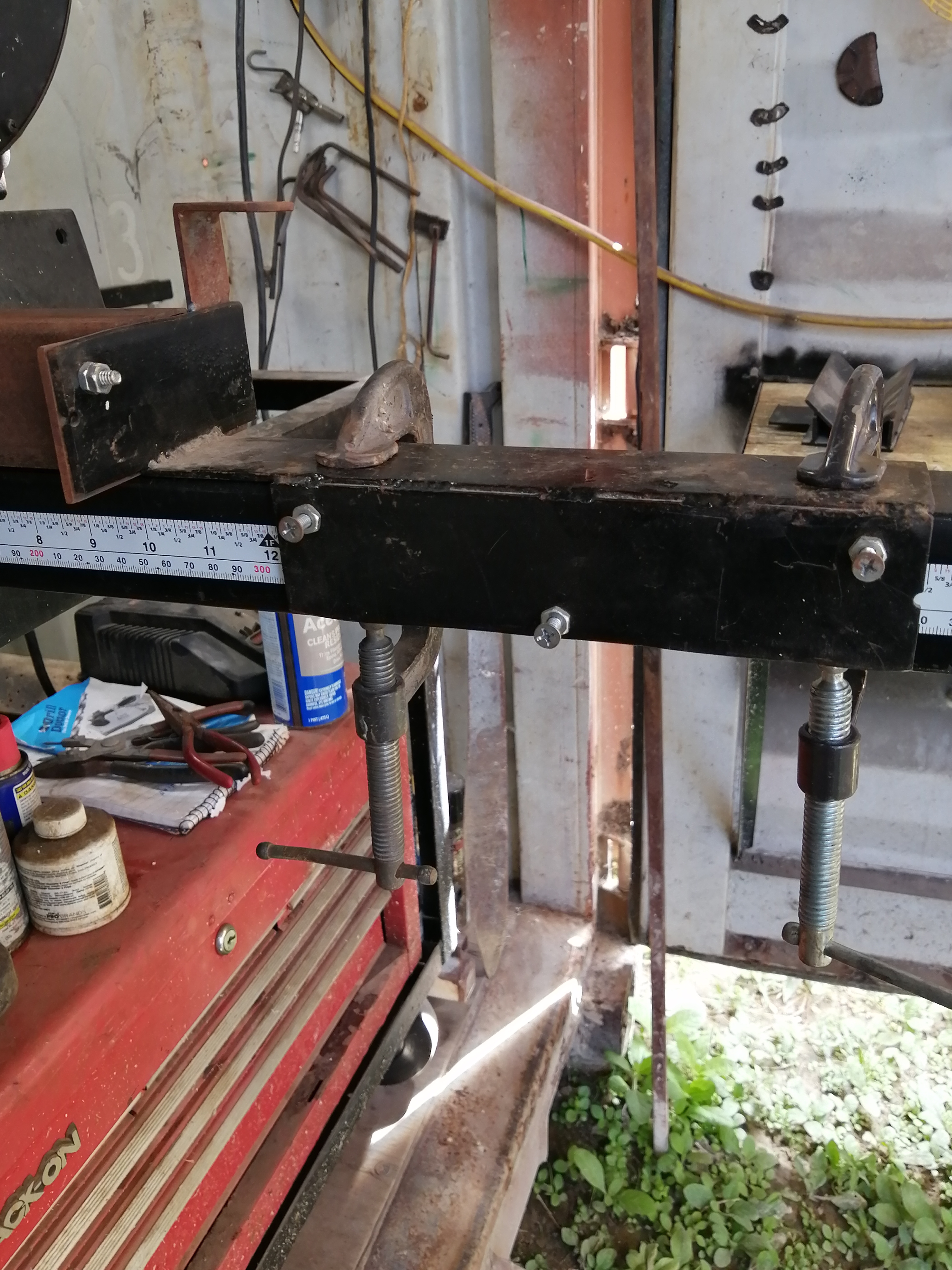

Cut stop fastened to out-feed 'table'.

Cut Stop spacer swung out of the way.

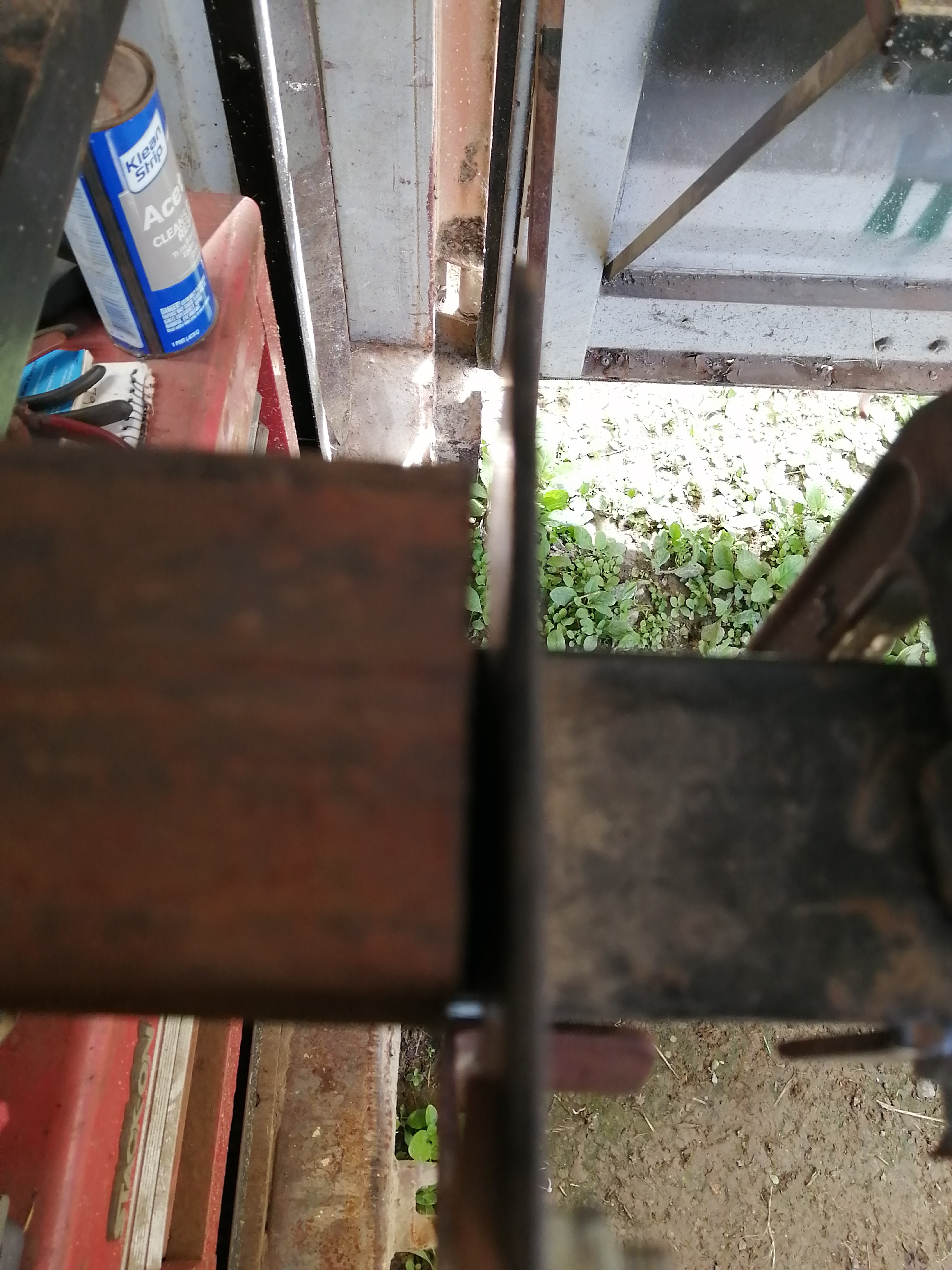

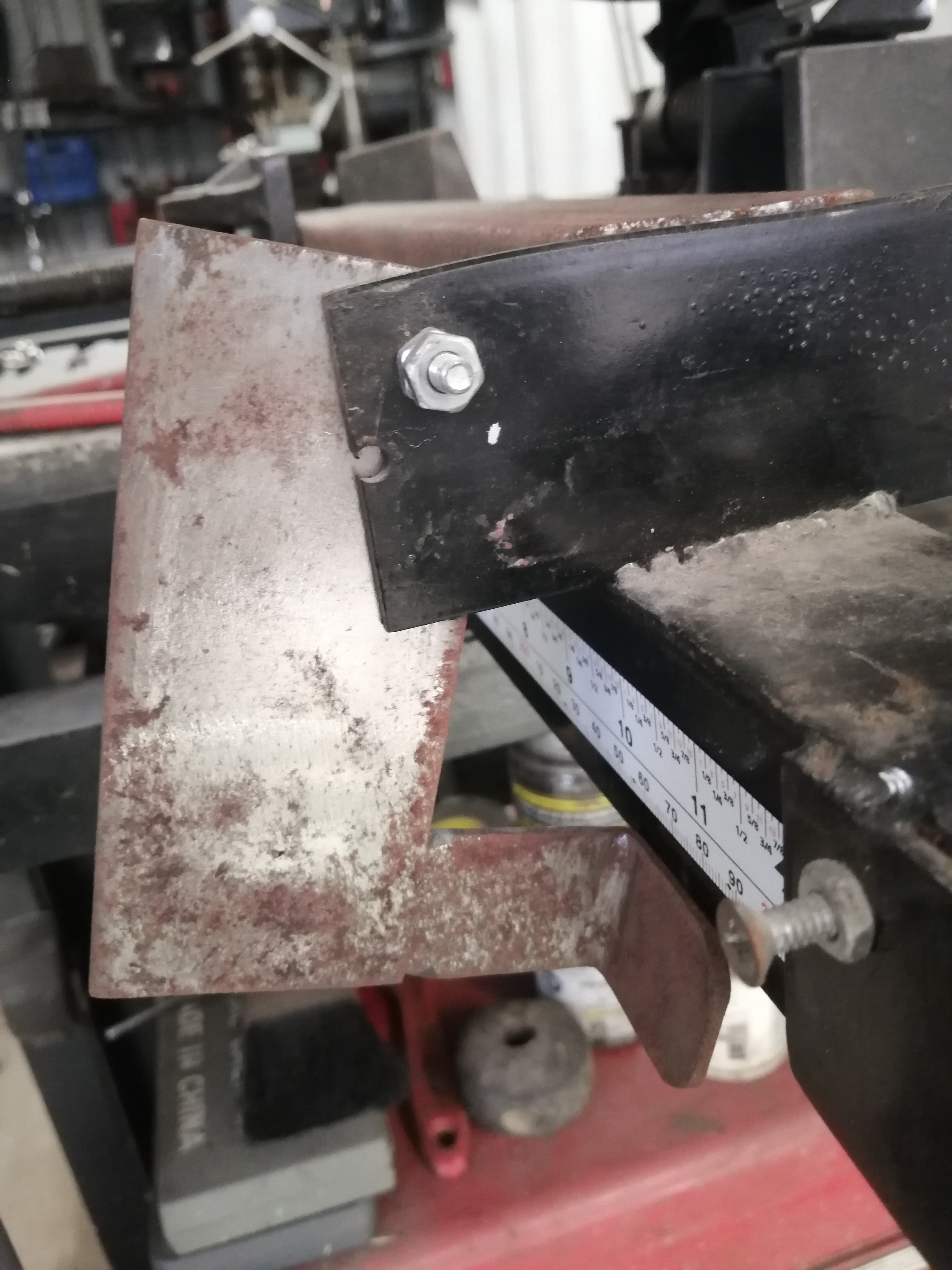

Gap that prevents blade pinching during a cut.

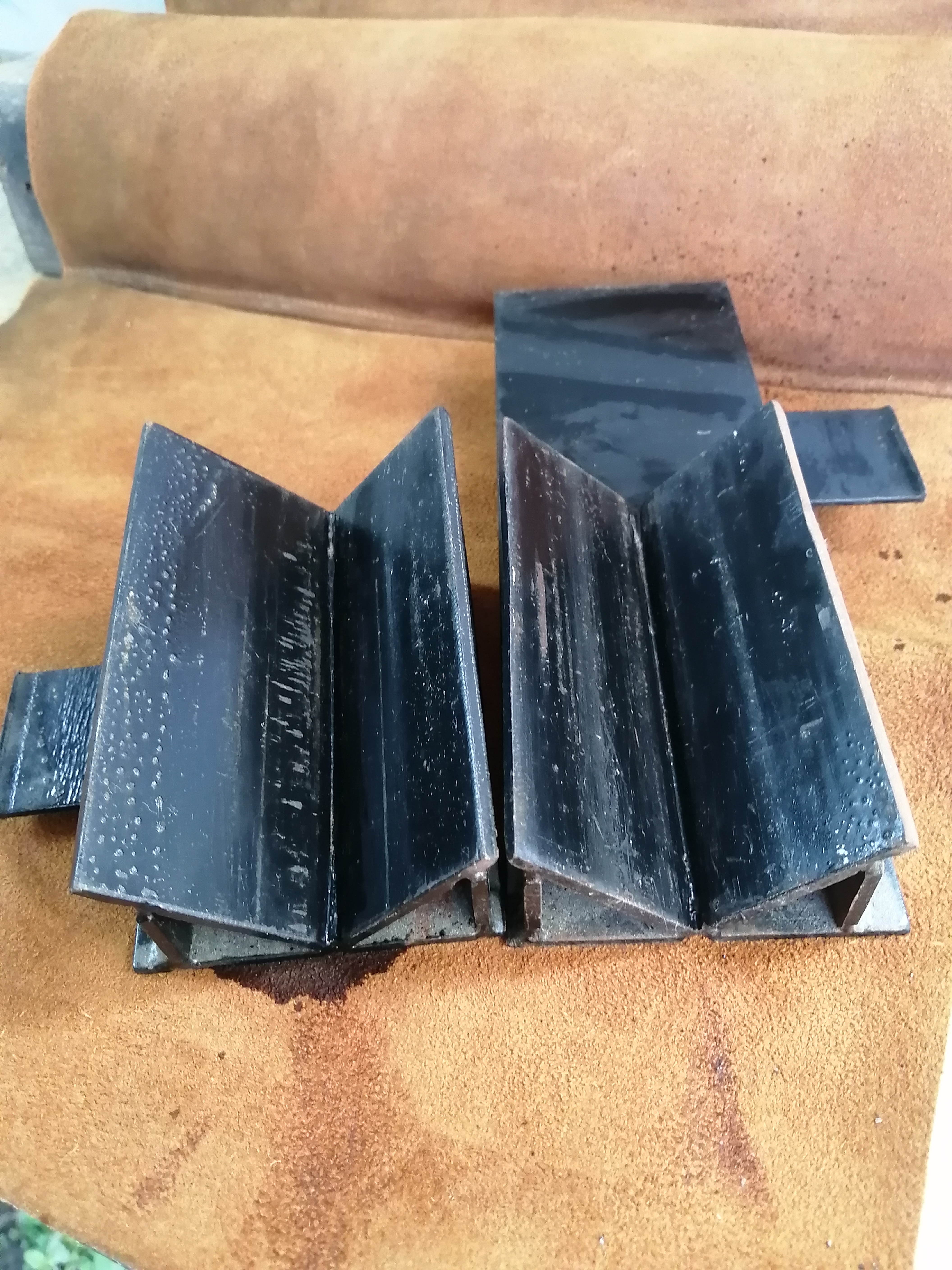

Vise addons to properly cut square tubing.

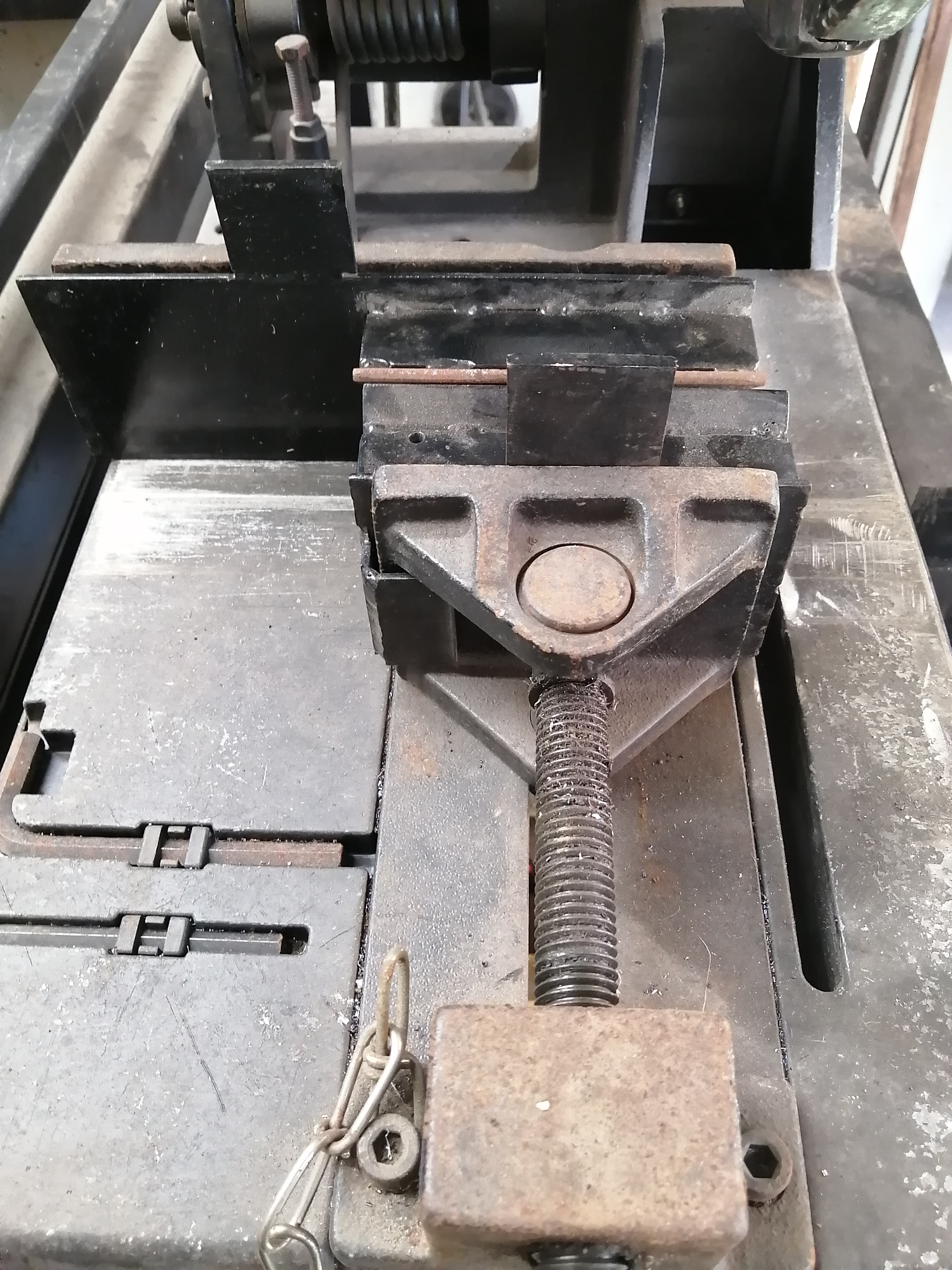

Addons fitted to vise for diamond hold.

The proper way to never cut on the 'flats'.

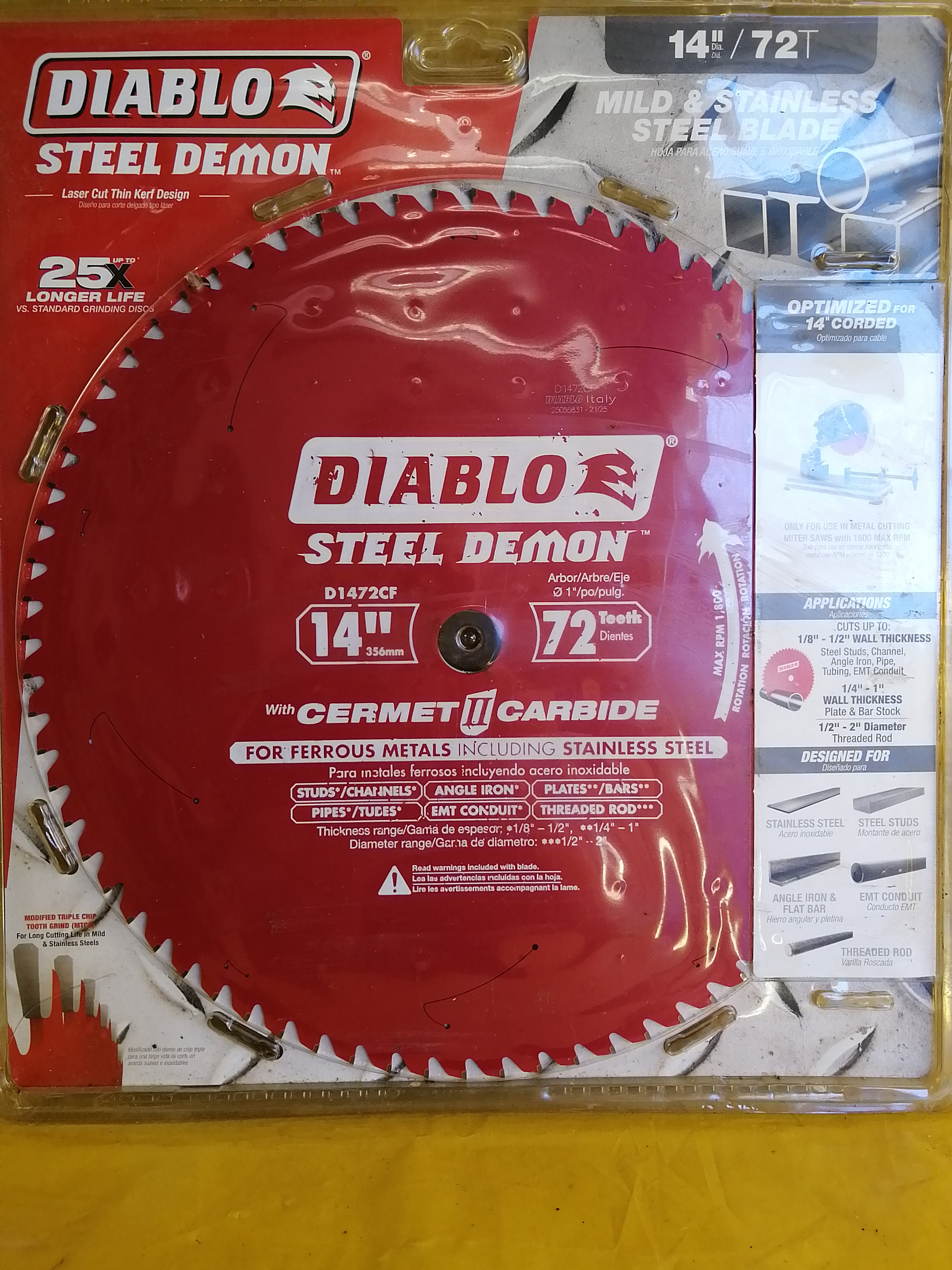

The preferred blade.

Back

Selling for: $300

Reference:

This describes the 14" chop saw and how it is integrated into the shop to handle 20' sections of stock.

The saw vise is normally set to cut perpendicular to the stock but Allen keys are supplied in the base of the saw to alter that angle.

The welding table top is the 'in-feed' table to the saw and a long piece of 2" square tubing is the 'out-feed' table and has a measuring tape applied to it for easy cut measurement. That 'out-feed table' is registered on a specific pin when needed and is stored in the container when not in use.

Two home made addons were created to better utilize the saw; a 'cut stop' and a vise attachment that holds square stock not on its flats but on its edges (diamond position) so that the saw starts a cut on an edge. The rule is to never start a cut on a flat to save the saw blade from premature wear.

The cut stop is positioned once for a given length of cut and used for however many pieces are needed. The 'diamond' attachment slides over the saw's vise to hold square tubing so when viewed on end it is resting on an edge (45 degrees) instead of on a flat side.

There are several new blades available plus older blades waiting for enough of them to ship to be re-manufactured. Blades are expensive. Blades @ Amazon New blades sold for $100 each. Buy them all and you get all the older blades for free.
